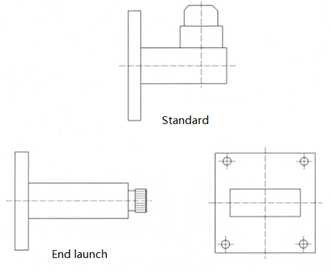

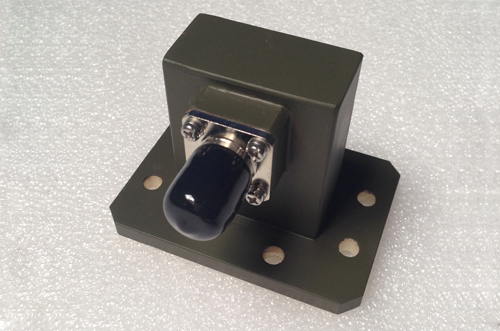

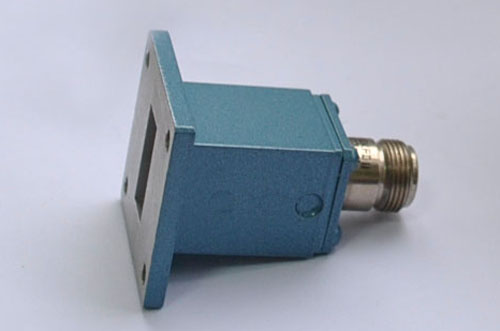

Waveguide to coaxial transition (Adapter)
![Waveguide to coaxial transition (Adapter)]()
![Waveguide to coaxial transition (Adapter)]()
Features:
● Low VSWR
● Low Insertion loss
● Small dimension
● High power
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request
Material
● Aluminum
● Copper
● Aluminum
● Copper
Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained
Waveguide to Coaxial Transition (Adapter)
| WG Designation |
Frequency (Ghz) |
Flange Type | Adapter |
VSWR (dB) |
|
| WR | R | ||||
| 650 | 14 | 1.13-1.73 | CPR650 | N(f) | 1.25 |
| 510 | 18 | 1.45-2.20 | CPR510 | N(f) | 1.25 |
| 430 | 22 | 1.7-2.6 | CPR430矩 | N(f) | 1.25 |
| 340 | 26 | 2.2-3.3 | CPR340 | N(f) | 1.25 |
| 284 | 32 | 2.6-3.95 | CPR284 | N(f) | 1.25 |
| 229 | 40 | 3.6-4.2 | CPR229 | N(f) | 1.25 |
| 187 | 48 | 3.95-5.85 | CPR187 | N(f) | 1.25 |
| 159 | 58 | 4.9-7.05 | CPR159 | N(f) | 1.25 |
| 137 | 70 | 5.8-8.2 | CPR137 | N(f) | 1.25 |
| 112 | 84 | 7.5-10.0 | CPR112 | N(f) | 1.25 |
| 90 | 100 | 8.2-12.4 | UG39/U | N(f) | 1.25 |
| 75 | 120 | 10.0-15.0 | UBR120 | N(f) | 1.25 |
| 62 | 140 | 12.4-18 | UG419/U | N(f) | 1.25 |
| 51 | 180 | 15-22 | UBR180 | SMA(f) | 1.25 |
| 42 | 220 | 18-26.5 | UG595/U | K(f) | 1.25 |
| 34 | 260 | 22-33 | UBR260 | K(f) | 1.25 |
| 28 | 320 | 26.5-40 | UG599/U | K(f) | 1.25 |
| 22 | 400 | 32.9-50.1 | CPR22 | SMA(f) | 1.35 |
