Elliptical waveguide
![Elliptical waveguide]()
![Elliptical waveguide]()
![Elliptical waveguide]()
Maximum Operating Pressure : 55Kpa
Elliptical waveguide is an important component in microwave communication system. It’s insertion loss is low, power capacity is large. It can be laid with long length, so it is ideal for the connection between the antenna and the feeder device.

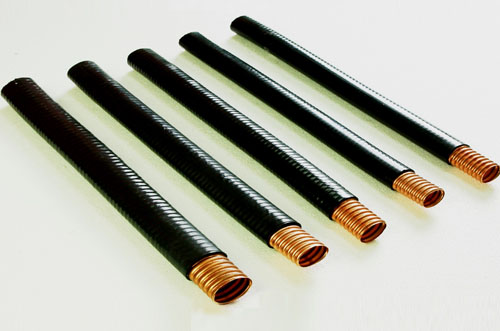

Elliptical waveguide is mainly composed of the inner conductor and the outer jacket. Elliptical waveguide has good flexibility and tensile ability dual to the wrinkle structure of the inner conductor; The outer jacket can provide protection to the elliptical waveguide during installation and working.
Elliptical waveguide from Huacheng manufacturer carries a wide range of types. Frequency 2.2-19.7 Ghz.
Application
Radar, Communication, Satellite ground station
Digital microwave relay communication, Broadcast television microwave transmission.
Features:
● Low VSWR
● Low Insertion loss
● Can produce long lenth, easy to install
● Operating temperature: -55℃ ~ 85℃
● Storage temperature: -55℃~ 85℃
● Low cost
Jacket：Black polyethylene(PE)
Elliptical waveguide
| Model |
Frequency (GHz) |
VSWR |
Insertion Loss (dB/100m) |
Overall Dimension (mm) |
Min. Bend Radius |
Weight (kg/m) |
Flange | |
| E(mm) | H(mm) | |||||||
| HC-EW24s | 2.200-3.100 | 1.2 | 2.0 | 100.0×63.0 | 800 | 2000 | 2.6 |
PDR26 UDR26 PDR32 UDR32 |
| HC-EW26s | 2.500-2.700 | 1.25 | 2.0 | 108.0×61.0 | 600 | 1500 | 2.5 | N-K50 IF-45 |
| HC-EW38s | 3.400-4.200 | 1.1 |
3.6(3.4Ghz) 2.6(4.2Ghz) |
79.0×43.0 | 340 | 840 | 1.7 | PDR40 UDR40 |
| HC-EW36x | 3.400-3.800 | 1.1 | 2.6 | 81.7×52.0 | 500 | 1000 | 2.2 | PBR40 |
| HC-EW40x | 3.800-4.200 | 1.1 | 3.1 | 72.2×47.8 | 400 | 1000 | 1.8 | PBR40 |
| HC-EW47x | 4.400-5.000 | 1.1 | 3.5 | 72.0×41.5 | 400 | 1000 | 1.4 | PBR48 |
| HC-EW48s | 4.400-5.000 | 1.15 |
4.7(4.4Ghz) 3.8(5.0Ghz) |
72.0×42.0 | 300 | 750 | 1.4 | PDR48 UDR48 |
| HC-EW54s | 5.000-6.000 | 1.15 |
5.3(5Ghz) 4.3(6Ghz) |
58.5×38.0 | 240 | 580 | 1 |
PDR48 UDR48 PDR58 UDR58 |
| HC-EW62h | 5.925-6.425 | 1.1 | 4.7 | 49.4×28.8 | 600 | 1000 | PDR70 | |
| HC-EW65x | 5.925-7.125 | 1.1 | 4.8 | 50.3×29.4 | 300 | 800 | 1.1 | PBR70 |
| HC-EW68h | 6.425-7.125 | 1.1 | 5.0 | 44.8×26.2 | 500 | 800 | PDR70 | |
| HC-EW75h | 7.125-7.725 | 1.1 | 5.5 | 44.4×27.3 | 500 | 800 | PDR70 | |
| HC-EW82h | 7.725-8.275 | 1.1 | 6.3 | 40.0×26.0 | 500 | 700 | PBR84 | |
| HC-EW78x | 7.125-8.500 | 1.1 | 5.8 | 44.6×26.3 | 160 | 520 | 0.8 |
PBR70 PBR84 PDR84 |
| HC-EW85h | 8.275-8.725 | 1.1 | 6.3 | 40.0×26.0 | 500 | 700 | PBR84 | |
| HC-EW85x | 8.200-8.750 | 1.1 | 6.4 | 41.7×24.7 | 300 | 600 | 0.8 |
PBR84 PDR84 PBR100 |
| HC-EW90s | 8.600-10.000 | 1.15 |
11.2(8.6Ghz) 9.5(10.0Ghz) |
34.0×24.0 | 160 | 350 | 0.6 |
PDR84 UDR84 PDR100 UDR100 |
| HC-EW109x | 10.100-11.700 | 1.1 | 9.5 | 33.5×21.4 | 260 | 400 | 0.5 | PBR100 PBR120 |
| HC-EW110s | 10.200-11.700 | 1.15 |
10.7(10.2Ghz) 9.9(11.7Ghz) |
33.0×21.0 | 150 | 300 | 0.5 |
PDR100 UDR100 PBR100 UBR100 |
| HC-EW120s | 10.95-12.75 | 1.2 | 10.0 | 29.0×15.0 | 150 | 300 | 0.4 | PBR120 UBR120 |
| HC-EW148s | 14.00-15.35 | 1.2 |
16.5(14Ghz) 15.5(15.35Ghz) |
25.3×16.0 | 150 | 350 | 0.34 |
PBR120 UBR120 PBR140 UBR140 |
| HC-EW188s | 17.70-19.70 | 1.25 |
20.5(17.7Ghz) 19.0(19.7Ghz) |
23.6×16.1 | 150 | 380 | 0.22 |
PBR220 UBR220 PBR140 UBR140 |
| HC-EW62s-6G | 5.925-6.425 | 1.1 | 5.2 | 52.0×30.0 | 220 | 550 | 0.85 | PDR70 UDR70 |
| HC-EW62s-7G | 6.425-7.125 | 1.1 | 4.5 | 33.5×21.10 | 220 | 550 | 0.85 | PDR70 UDR70 |
| HC-EW80s-7G | 7.125-7.725 | 1.1 | 5.4 | 33.5×21.11 | 200 | 520 | 0.72 |
PDR70 UDR70 PDR84 UDR84 |
| HC-EW80s-8G | 7.725-8.500 | 1.1 | 5.4 | 33.5×21.12 | 200 | 520 | 0.72 |
PDR70 UDR70 PDR84 UDR84 |
Maximum Operating Pressure : 55Kpa
Elliptical waveguide is an important component in microwave communication system. It’s insertion loss is low, power capacity is large. It can be laid with long length, so it is ideal for the connection between the antenna and the feeder device.
Elliptical waveguide is mainly composed of the inner conductor and the outer jacket. Elliptical waveguide has good flexibility and tensile ability dual to the wrinkle structure of the inner conductor; The outer jacket can provide protection to the elliptical waveguide during installation and working.
Elliptical waveguide from Huacheng manufacturer carries a wide range of types. Frequency 2.2-19.7 Ghz.
Application
Radar, Communication, Satellite ground station
Digital microwave relay communication, Broadcast television microwave transmission.
