E/H bend waveguide

Features:
● Low VSWR
● Low Insertion loss
● High Power
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request

Contact

Material
● Aluminum
● Copper

Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained

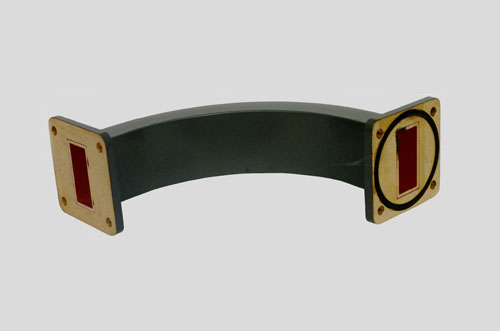

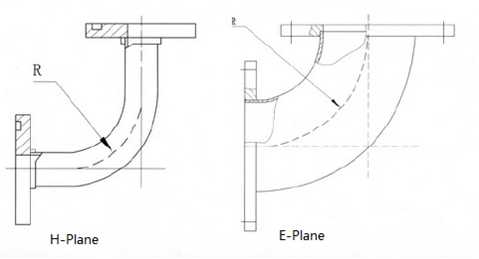

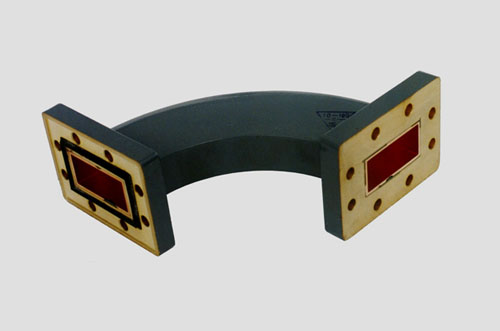

E/H Bend Waveguide

WG Designation			Frequency (GHz)	E Bend P/N	H Bend P/N	VSWR (dB)
BJ	WR	R	Frequency (GHz)	E Bend P/N	H Bend P/N	VSWR (dB)
14	650	14	1.13-1.73	HC-14WEB	HC-14WHB	Single Bend ≤1.10 More than Single Bend ≤1.20
18	510	18	1.45-2.20	HC-18WEB	HC-18WHB
22	430	22	1.72-2.61	HC-22WEB	HC-22WHB
26	340	26	2.17-3.30	HC-26WEB	HC-26WHB
32	284	32	2.60-3.95	HC-32WEB	HC-32WHB
40	229	40	3.22-4.90	HC-40WEB	HC-40WHB
48	187	48	3.94-5.99	HC-48WEB	HC-48WHB
58	159	58	4.64-7.05	HC-58WEB	HC-58WHB
70	137	70	5.38 - 8.17	HC-70WEB	HC-70WHB
84	112	84	6.57-10.00	HC-84WEB	HC-84WHB
100	90	100	8.20-12.50	HC-100WEB	HC-100WHB
120	75	120	9.84-15.00	HC-120WEB	HC-120WHB
140	62	140	11.90-18.00	HC-140WEB	HC-140WHB
180	51	180	14.50-22.00	HC-180WEB	HC-180WHB
220	42	220	17.60-26.70	HC-220WEB	HC-220WHB
260	34	260	21.70-33.00	HC-260WEB	HC-260WHB
320	28	320	26.30-40.00	HC-320WEB	HC-320WHB
400	22	400	32.90-50.10	HC-400WEB	HC-400WHB

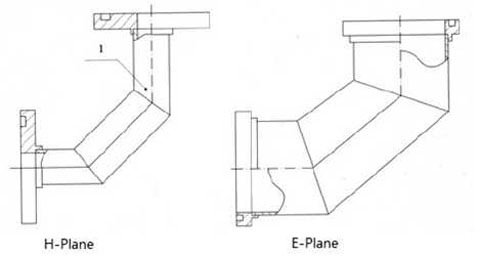

E/H Bend Waveguide - Miter

WG Designation			Frequency (GHz)	E Bend P/N	H Bend P/N	VSWR (dB)
BJ	WR	R	Frequency (GHz)	E Bend P/N	H Bend P/N	VSWR (dB)
14	650	14	1.13-1.73	HC-14WTEB	HC-14WTHB	Single Bend ≤1.10 More than Single Bend ≤1.20
18	510	18	1.45-2.20	HC-18WTEB	HC-18WTHB
22	430	22	1.72-2.61	HC-22WTEB	HC-22WTHB
26	340	26	2.17-3.30	HC-26WTEB	HC-26WTHB
32	284	32	2.60-3.95	HC-32WTEB	HC-32WTHB
40	229	40	3.22-4.90	HC-40WTEB	HC-40WTHB
48	187	48	3.94-5.99	HC-48WTEB	HC-48WTHB
58	159	58	4.64-7.05	HC-58WTEB	HC-58WTHB
70	137	70	5.38 - 8.17	HC-70WTEB	HC-70WTHB
84	112	84	6.57-10.00	HC-84WTEB	HC-84WTHB
100	90	100	8.20-12.50	HC-100WTEB	HC-100WTHB
120	75	120	9.84-15.00	HC-120WTEB	HC-120WTHB
140	62	140	11.90-18.00	HC-140WTEB	HC-140WTHB
180	51	180	14.50-22.00	HC-180WTEB	HC-180WTHB
220	42	220	17.60-26.70	HC-220WTEB	HC-220WTHB
260	34	260	21.70-33.00	HC-260WTEB	HC-260WTHB
320	28	320	26.30-40.00	HC-320WTEB	HC-320WTHB
400	22	400	32.90-50.10	HC-400WTEB	HC-400WTHB
