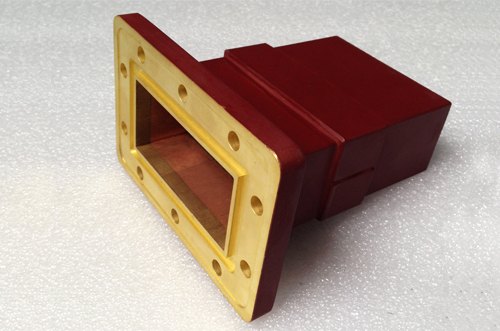

Termination -Low Power (Load)

Features:
● Low VSWR
● Short Length;
● Can do the Frequency upon request
● Can do the Length and Flange upon request
● Alternate Material and Finish available upon request

Contact

Material
● Aluminum
● Copper

Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained

Termination -Low Power (Load)

WG Designation			Frequency (GHz)	VSWR (dB)	Length (mm)
BJ	WR	R	Frequency (GHz)	VSWR (dB)	Length (mm)
14	650	14	1.13-1.73	≤1.03	700
18	510	18	1.45-2.20	≤1.03	500
22	430	22	1.72-2.61	≤1.03	400
26	340	26	2.17-3.30	≤1.03	350
32	284	32	2.60-3.95	≤1.03	340
40	229	40	3.22-4.90	≤1.03	300
48	187	48	3.94-5.99	≤1.03	250
58	159	58	4.64-7.05	≤1.03	210
70	137	70	5.38 - 8.17	≤1.03	180
84	112	84	6.57-10.00	≤1.03	150
100	90	100	8.20-12.50	≤1.03	120
120	75	120	9.84-15.00	≤1.03	110
140	62	140	11.90-18.00	≤1.03	100
180	51	180	14.50-22.00	≤1.03	90
220	42	220	17.60-26.70	≤1.03	80
260	34	260	21.70-33.00	≤1.03	75
320	28	320	26.30-40.00	≤1.03	70
400	22	400	32.90-50.10	≤1.03	65
