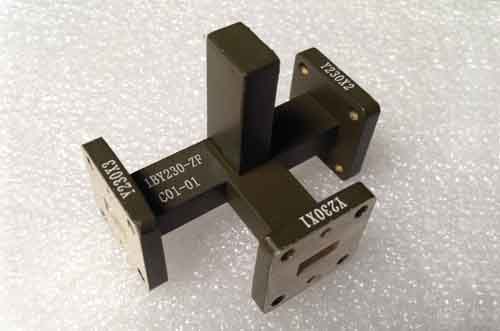

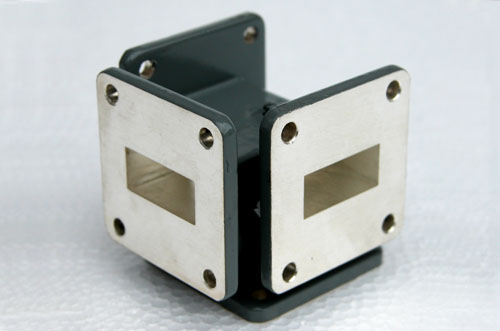

Magic tees

Features:
● Low VSWR
● Low Insertion loss
● High Isolation
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request

Contact

Material
● Aluminum
● Copper

Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained

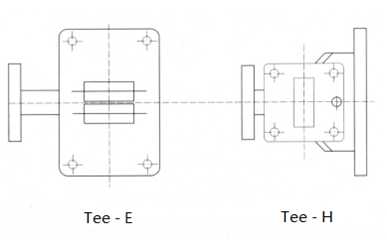

Magic Tees

WG Designation			Frequency (GHz)	Isolation (dB)	Balance (dB)	Bandwidth (%)	VSWR(dB)
BJ	WR	R	Frequency (GHz)	Isolation (dB)	Balance (dB)	Bandwidth (%)	E Plane	H Plane
14	650	14	1.13-1.73	≥ 35	± 0.3	10 ~ 20	≤ 1.50	≤ 1.20
18	510	18	1.45-2.20	≥ 35	± 0.3	10 ~ 20
22	430	22	1.72-2.61	≥ 35	± 0.3	10 ~ 20
26	340	26	2.17-3.30	≥ 35	± 0.3	10 ~ 20
32	284	32	2.60-3.95	≥ 35	± 0.3	10 ~ 20
40	229	40	3.22-4.90	≥ 35	± 0.3	10 ~ 20	≤ 1.30	≤ 1.20
48	187	48	3.94-5.99	≥ 35	± 0.3	10 ~ 20
58	159	58	4.64-7.05	≥ 35	± 0.3	10 ~ 20
70	137	70	5.38 - 8.17	≥ 35	± 0.3	10 ~ 20
84	112	84	6.57-10.00	≥ 35	± 0.3	10 ~ 20
100	90	100	8.20-12.50	≥ 35	± 0.3	10 ~ 20
120	75	120	9.84-15.00	≥ 35	± 0.3	10 ~ 20
140	62	140	11.90-18.00	≥ 35	± 0.3	10 ~ 20	≤ 1.50	≤ 1.20
180	51	180	14.50-22.00	≥ 35	± 0.3	10 ~ 20
220	42	220	17.60-26.70	≥ 30	± 0.3	10 ~ 20
260	34	260	21.70-33.00	≥ 30	± 0.3	10 ~ 20
320	28	320	26.30-40.00	≥ 30	± 0.3	10 ~ 20
400	22	400	32.90-50.10	≥ 30	± 0.3	10 ~ 20
