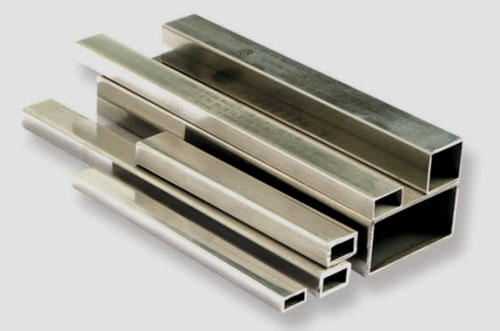

Rectangular rigid waveguide tube

Features:
● Material : 3A21 AL , 6063 AL , 96 Cu
● Max. length is 2 metre.

Contact

Rectangular Rigid Waveguide Tube

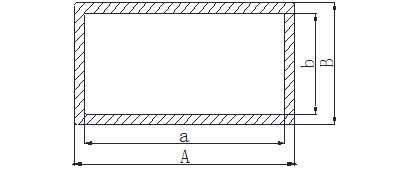

WG Designation			Frequency Range of Dominant Mode	Cut-off Frequency	Inside Dimension (mm)		Outer Dimension (mm)		Weight（kg/m）
R	WR	BJ	GHz	GHz	a	b	A	B	H96	LF21
14	650	14	1.14-1.73	907.91	165.1	82.55	169.16	86.61	9.04	2.81
18	510	18	1.45-2.20	1157.1	129.54	64.77	133.6	68.83	7.13	2.21
22	430	22	1.72-2.61	1372.4	109.22	54.61	113.28	58.67	6.03	1.87
26	340	26	2.17-3.30	1735.7	86.36	43.18	90.42	47.24	4.81	1.5
32	284	32	2.60-3.95	2077.9	72.14	34.04	76.2	38.1	3.96	1.23
40	229	40	3.22-4.90	2576.9	58.17	29.08	61.42	32.33	2.6	0.81
48	187	48	3.94-5.99	3152.4	47.55	22.15	50.8	25.4	2.1	0.65
58	159	58	4.64-7.05	3711.2	40.39	20.19	43.64	23.44	1.84	0.57
70	137	70	5.38-8.17	4301.2	34.85	15.8	38.1	19.05	1.54	0.48
84	112	84	6.57-9.99	5295.7	28.5	12.62	31.75	15.88	1.27	0.4
100	90	100	8.20-12.5	6557.1	22.86	10.16	25.4	12.7	0.79	0.25
120	75	120	9.84-15.0	7868.6	19.05	9.525	21.59	12.06	0.69	0.22
140	62	140	11.9-18.0	9487.7	15.8	7.899	17.83	9.93	0.46	0.14
180	51	180	14.5-22.0	11571	12.95	6.477	14.99	8.51	0.39	0.12
220	42	220	17.6-26.7	14051	10.67	4.318	12.7	6.35	0.31	0.1
260	34	260	21.7-33.0	17357	8.636	4.318	10.67	6.35	0.27	0.08
320	28	320	26.4-40.0	21077	7.112	3.556	9.14	5.59	0.23	0.07
400	22	400	32.9-50.1	26344	5.69	2.845	7.72	4.88	0.2	0.06
500	18	500	39.2-59.6	31392	4.775	2.388	6.81	4.42	0.17	0.05
620	14	620	49.8-75.8	39877	3.759	1.88	5.79	3.91	0.15	0.05
740	12	740	60.5-91.9	48369	3.0988	1.5494	5.13	3.58	0.13	0.04
900	10	900	73.8-112	59014	2.54	1.27	4.57	3.3	0.11	0.04
