Waveguide component Home > Products > Waveguide component

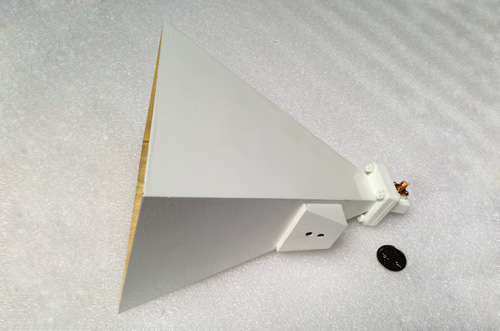

Standard gain horns
Standard gain horns
Standard gain horns
Standard gain horns
Standard gain horns

Features:
● Reliable structure
● Stable performance
● Accurate calibration
● High linear polarization purity

Contact

Standard Gain Horn Antenna

WG Designation Frequency
(GHz)		 Series 10 dB Series  15 dB
Lobewidth: 55° Lobewidth: 30°
BJ WR R P/N Connector  P/N Connector
14 650 14 1.13-1.73 HC-14HA10 N HC-14HA15 N
18 510 18 1.45-2.20 HC-18HA10 N HC-18HA15 N
22 430 22 1.72-2.61 HC-22HA10 N HC-22HA15 N
26 340 26 2.17-3.30 HC-26HA10 N HC-26HA15 N
32 284 32 2.60-3.95 HC-32HA10 N HC-32HA15 N
40 229 40 3.22-4.90 HC-40HA10 N HC-40HA15 N
48 187 48 3.94-5.99 HC-48HA10 N HC-48HA15 N
58 159 58 4.64-7.05 HC-58HA10 N HC-58HA15 N
70 137 70 5.38 - 8.17 HC-70HA10 N HC-70HA15 N
84 112 84 6.57-10.00 HC-84HA10 N HC-84HA15 N
100 90 100 8.20-12.50 HC-100HA10 N HC-100HA15 N
120 75 120 9.84-15.00 HC-120HA10 SMA HC-120HA15 SMA
140 62 140 11.90-18.00 HC-140HA10 SMA HC-140HA15 SMA
180 51 180 14.50-22.00 HC-180HA10 K-2.92 HC-180HA15 K-2.92
220 42 220 17.60-26.70 HC-220HA10 K-2.92 HC-220HA15 K-2.92
260 34 260 21.70-33.00 HC-260HA10 K-2.92 HC-260HA15 K-2.92
320 28 320 26.30-40.00 HC-320HA10 K-2.92 HC-320HA15 K-2.92
400 22 400 32.90-50.10　 HC-400HA10 K-2.92 HC-400HA15 K-2.92

Standard Gain Horn Antenna

WG Designation Frequency
(GHz)		 Series  20 dB Series  25 dB
Lobewidth: 18° Lobewidth: 10°
BJ WR R P/N Connector  P/N Connector
14 650 14 1.13-1.73 - - - -
18 510 18 1.45-2.20
22 430 22 1.72-2.61
26 340 26 2.17-3.30
32 284 32 2.60-3.95 HC-32HA20 N
40 229 40 3.22-4.90 HC-40HA20 N
48 187 48 3.94-5.99 HC-48HA20 N
58 159 58 4.64-7.05 HC-58HA20 N
70 137 70 5.38 - 8.17 HC-70HA20 N
84 112 84 6.57-10.00 HC-84HA20 N
100 90 100 8.20-12.50 HC-100HA20 N HC-100HA25 N
120 75 120 9.84-15.00 HC-120HA20 SMA HC-120HA25 SMA
140 62 140 11.90-18.00 HC-140HA20 SMA HC-140HA25 SMA
180 51 180 14.50-22.00 HC-180HA20 K-2.92 HC-180HA25 K-2.92
220 42 220 17.60-26.70 HC-220HA15 K-2.92 HC-220HA25 K-2.92
260 34 260 21.70-33.00 HC-260HA15 K-2.92 HC-260HA25 K-2.92
320 28 320 26.30-40.00 HC-320HA15 K-2.92 HC-320HA25 K-2.92
400 22 400 32.90-50.10　 HC-400HA15 K-2.92 HC-400HA25 K-2.92
