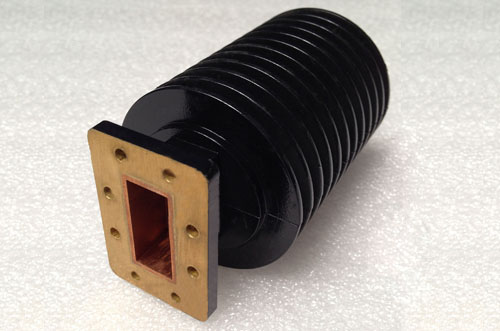

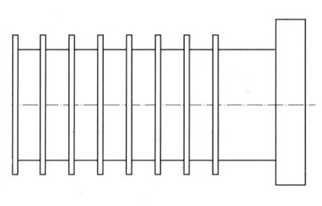

Termination -High Power (Load)
![Termination -High Power (Load)]()
![Termination -High Power (Load)]()
![Termination -High Power (Load)]()
Features:
● Low VSWR
● Low Insertion loss
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request
Material
● Aluminum
● Copper
● Aluminum
● Copper
Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained
Termination - High Power (Load)
| WG Designation |
Frequency (GHz) |
VSWR (dB) |
Average Power (W) |
||
| BJ | WR | R | |||
| 14 | 650 | 14 | 1.13-1.73 | ≤1.10 | 3800 |
| 18 | 510 | 18 | 1.45-2.20 | ≤1.10 | 3800 |
| 22 | 430 | 22 | 1.72-2.61 | ≤1.10 | 3500 |
| 26 | 340 | 26 | 2.17-3.30 | ≤1.10 | 3500 |
| 32 | 284 | 32 | 2.60-3.95 | ≤1.10 | 3300 |
| 40 | 229 | 40 | 3.22-4.90 | ≤1.10 | 3300 |
| 48 | 187 | 48 | 3.94-5.99 | ≤1.10 | 3000 |
| 58 | 159 | 58 | 4.64-7.05 | ≤1.10 | 2500 |
| 70 | 137 | 70 | 5.38 - 8.17 | ≤1.10 | 2000 |
| 84 | 112 | 84 | 6.57-10.00 | ≤1.10 | 1800 |
| 100 | 90 | 100 | 8.20-12.50 | ≤1.10 | 1500 |
| 120 | 75 | 120 | 9.84-15.00 | ≤1.10 | 1200 |
| 140 | 62 | 140 | 11.90-18.00 | ≤1.10 | 1000 |
| 180 | 51 | 180 | 14.50-22.00 | ≤1.10 | 800 |
| 220 | 42 | 220 | 17.60-26.70 | ≤1.10 | 500 |
| 260 | 34 | 260 | 21.70-33.00 | ≤1.10 | 400 |
| 320 | 28 | 320 | 26.30-40.00 | ≤1.10 | 250 |
| 400 | 22 | 400 | 32.90-50.10 | ≤1.10 | 230 |
