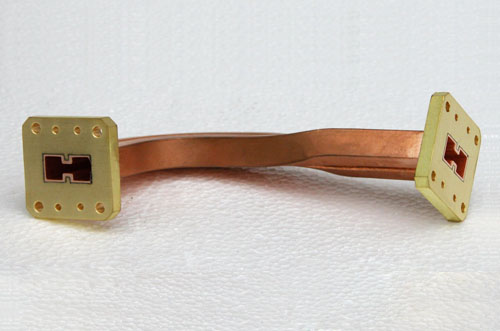

Twist waveguide
![Twist waveguide]()
Features:
● Low VSWR ;low Insertion loss
● High Power
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request
Material
● Aluminum
● Copper
● Aluminum
● Copper
Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained

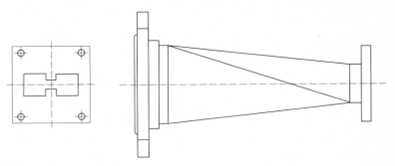

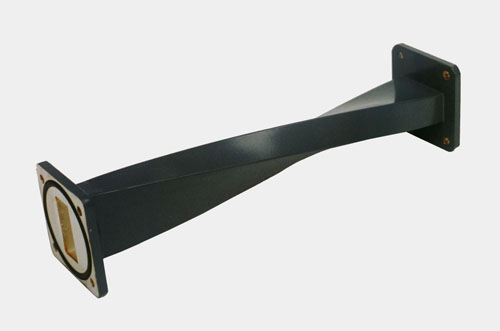

Twist Waveguide
| WG Designation |
Frequency (GHz) |
P/N |
Length (mm) |
VSWR (dB) |
||
| BJ | WR | R | ||||
| 22 | 430 | 22 | 1.72-2.61 | HC-22WG | 780 | ≤1.08 |
| 26 | 340 | 26 | 2.17-3.30 | HC-26WG | 450 | ≤1.08 |
| 32 | 284 | 32 | 2.60-3.95 | HC-32WG | 385 | ≤1.08 |
| 40 | 229 | 40 | 3.22-4.90 | HC-40WG | 315 | ≤1.08 |
| 48 | 187 | 48 | 3.94-5.99 | HC-48WG | 255 | ≤1.08 |
| 58 | 159 | 58 | 4.64-7.05 | HC-58WG | 215 | ≤1.08 |
| 70 | 137 | 70 | 5.38 - 8.17 | HC-70WG | 185 | ≤1.08 |
| 84 | 112 | 84 | 6.57-10.00 | HC-84WG | 150 | ≤1.08 |
| 100 | 90 | 100 | 8.20-12.50 | HC-100WG | 125 | ≤1.08 |
| 120 | 75 | 120 | 9.84-15.00 | HC-120WG | 105 | ≤1.08 |
| 140 | 62 | 140 | 11.90-18.00 | HC-140WG | 85 | ≤1.08 |
| 180 | 51 | 180 | 14.50-22.00 | HC-180WG | 80 | ≤1.08 |
| 220 | 42 | 220 | 17.60-26.70 | HC-220WG | 70 | ≤1.08 |
| 260 | 34 | 260 | 21.70-33.00 | HC-260WG | 65 | ≤1.08 |
| 320 | 28 | 320 | 26.30-40.00 | HC-320WG | 65 | ≤1.08 |
| 400 | 22 | 400 | 32.90-50.10 | HC-400WG | 60 | ≤1.08 |

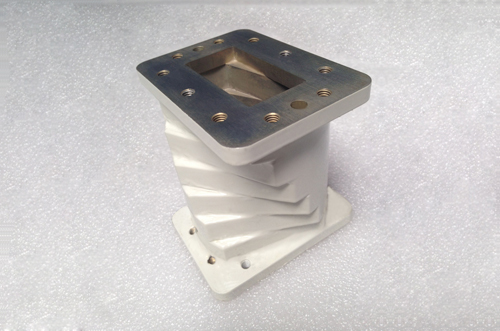

Twist Waveguide - Stairs
| WG Designation |
Frequency (GHz) |
P/N |
Length (mm) |
VSWR (dB) |
||
| BJ | WR | R | ||||
| 22 | 430 | 22 | 1.72-2.61 | HC-22WG | 275 | ≤1.08 |
| 26 | 340 | 26 | 2.17-3.30 | HC-26WG | 155 | ≤1.08 |
| 32 | 284 | 32 | 2.60-3.95 | HC-32WG | 125 | ≤1.08 |
| 40 | 229 | 40 | 3.22-4.90 | HC-40WG | 105 | ≤1.08 |
| 48 | 187 | 48 | 3.94-5.99 | HC-48WG | 85 | ≤1.08 |
| 58 | 159 | 58 | 4.64-7.05 | HC-58WG | 70 | ≤1.08 |
| 70 | 137 | 70 | 5.38 - 8.17 | HC-70WG | 65 | ≤1.08 |
| 84 | 112 | 84 | 6.57-10.00 | HC-84WG | 50 | ≤1.08 |
| 100 | 90 | 100 | 8.20-12.50 | HC-100WG | 40 | ≤1.08 |
| 120 | 75 | 120 | 9.84-15.00 | HC-120WG | 35 | ≤1.08 |
| 140 | 62 | 140 | 11.90-18.00 | HC-140WG | 30 | ≤1.08 |
| 180 | 51 | 180 | 14.50-22.00 | HC-180WG | 28 | ≤1.08 |
| 220 | 42 | 220 | 17.60-26.70 | HC-220WG | 20 | ≤1.08 |
| 260 | 34 | 260 | 21.70-33.00 | HC-260WG | 17 | ≤1.08 |
| 320 | 28 | 320 | 26.30-40.00 | HC-320WG | 13 | ≤1.08 |
| 400 | 22 | 400 | 32.90-50.10 | HC-400WG | 12 | ≤1.08 |
