Rotary joints

Features:
● Low VSWR
● Low Insertion loss
● High power
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request

Contact

Material
● Aluminum
● Copper

Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained

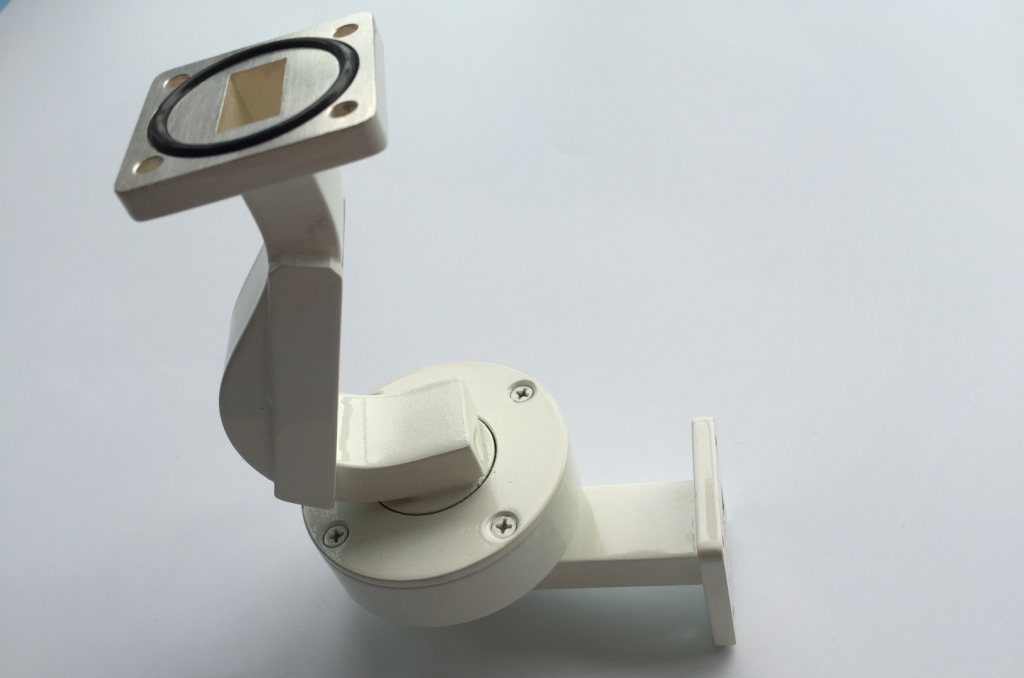

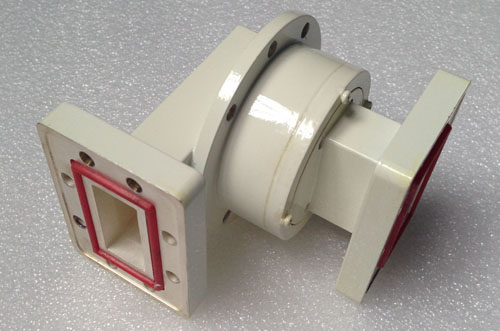

Rotary Joint

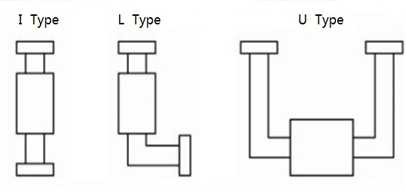

WG Designation			Frequency (GHz)	VSWR (dB)	P/N I Type	P/N L Type	P/N U Type
BJ	WR	R	Frequency (GHz)	VSWR (dB)	P/N I Type	P/N L Type	P/N U Type
32	284	32	2.60-3.95	1.15	HC-RJ-I-32	HC-RJ-L-32	HC-RJ-U-32
40	229	40	3.22-4.90	1.15	HC-RJ-I-40	HC-RJ-L-40	HC-RJ-U-40
48	187	48	3.94-5.99	1.15	HC-RJ-I-48	HC-RJ-L-48	HC-RJ-U-48
58	159	58	4.64-7.05	1.15	HC-RJ-I-58	HC-RJ-L-58	HC-RJ-U-58
70	137	70	5.38 - 8.17	1.15	HC-RJ-I-70	HC-RJ-L-70	HC-RJ-U-70
84	112	84	6.57-10.00	1.15	HC-RJ-I-84	HC-RJ-L-84	HC-RJ-U-84
100	90	100	8.20-12.50	1.15	HC-RJ-I-100	HC-RJ-L-100	HC-RJ-U-100
120	75	120	9.84-15.00	1.15	HC-RJ-I-120	HC-RJ-L-120	HC-RJ-U-120
140	62	140	11.90-18.00	1.15	HC-RJ-I-140	HC-RJ-L-140	HC-RJ-U-140
180	51	180	14.50-22.00	1.15	HC-RJ-I-180	HC-RJ-L-180	HC-RJ-U-180
220	42	220	17.60-26.70	1.20	HC-RJ-I-220	HC-RJ-L-220	HC-RJ-U-220
260	34	260	21.70-33.00	1.20	HC-RJ-I-260	HC-RJ-L-260	HC-RJ-U-260
320	28	320	26.30-40.00	1.20	HC-RJ-I-320	HC-RJ-L-320	HC-RJ-U-320
400	22	400	32.90-50.10	1.20	HC-RJ-I-400	HC-RJ-L-400	HC-RJ-U-400

Get Price And Support
