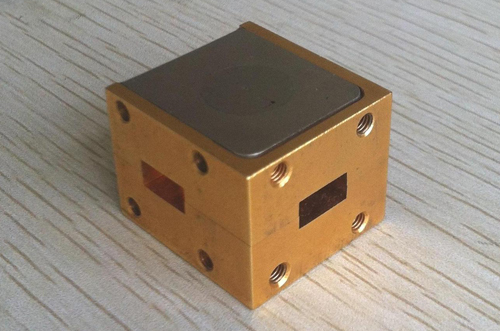

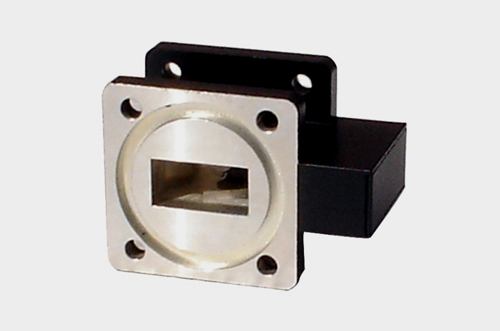

Isolator

Features:
● Low VSWR
● Low Return loss
● High Isolation
● Can do the Frequency upon request
● Can design Overall Dimension and Flange upon request
● Alternate Material and Finish available upon request

Contact

Material
● Aluminum
● Copper

Finish
● Silver
● Nickel
● Oxidation
● Deactivation
● Pained

Isolator

WG Designation			Frequency (GHz)	P/N	Bandwidth (%)	VSWR (dB)	Return loss (dB)	Isolation (dB)
BJ	WR	R	Frequency (GHz)	P/N	Bandwidth (%)	VSWR (dB)	Return loss (dB)	Isolation (dB)
32	284	32	2.60-3.95	HC-32ISO	8	≤1.15	≤0.30	≥20
40	229	40	3.22-4.90	HC-40ISO	6	≤1.15	≤0.30	≥20
48	187	48	3.94-5.99	HC-48ISO	9	≤1.15	≤0.30	≥20
58	159	58	4.64-7.05	HC-58ISO	9	≤1.15	≤0.30	≥20
70	137	70	5.38 - 8.17	HC-70ISO	9	≤1.15	≤0.30	≥20
84	112	84	6.57-10.00	HC-84ISO	7	≤1.15	≤0.30	≥20
100	90	100	8.20-12.50	HC-100ISO	7	≤1.15	≤0.30	≥20
120	75	120	9.84-15.00	HC-120ISO	7	≤1.15	≤0.30	≥20
140	62	140	11.90-18.00	HC-140ISO	6	≤1.15	≤0.30	≥20
180	51	180	14.50-22.00	HC-180ISO	4	≤1.15	≤0.30	≥20
220	42	220	17.60-26.70	HC-220ISO	8	≤1.25	≤0.35	≥20
260	34	260	21.70-33.00	HC-260ISO	6	≤1.25	≤0.35	≥20
320	28	320	26.30-40.00	HC-320ISO	5	≤1.25	≤0.35	≥20
400	22	400	32.90-50.10	HC-400ISO	5	≤1.30	≤0.40	≥20
