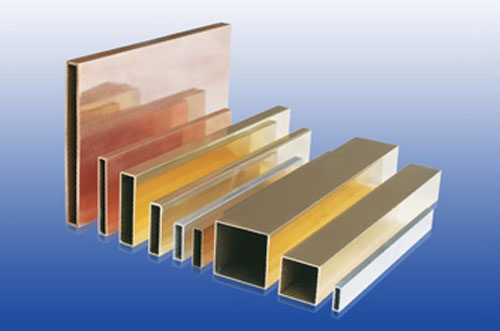

Flat rectangular rigid waveguide tube
![Flat rectangular rigid waveguide tube]()
![Flat rectangular rigid waveguide tube]()
![Flat rectangular rigid waveguide tube]()
Features:
● Material : 3A21 AL , 6063 AL , 96 Cu
Flat Rectangular Rigid Waveguide Tube
| WG Designation | Frequency | Inside dimension | Wall thickness | Material | |||
| R | WR | BJ | a | b | |||
| 84 | 112 | 84 | 6.57-9.99 | 28.499 | 5 | 1.2 | Cu/Al |
| 70 | 137 | 70 | 5.38-8.17 | 34.85 | 5 | 1.2 , 1.625 | Cu/Al |
| 58 | 159 | 58 | 4.64-7.05 | 40.39 | 5 | 1.625 | Cu/Al |
| 48 | 187 | 48 | 3.94-5.99 | 47.55 | 5.7 | 1.2 , 1.625 | Cu/Al |
| 40 | 229 | 40 | 3.22-4.90 | 58.17 | 7 | 2.03 | Cu/Al |
| 32 | 284 | 32 | 2.60-3.95 | 72.14 | 8.6 | 2.03 | Cu/Al |
| 26 | 340 | 26 | 2.17-3.30 | 86.36 | 10.4 | 2.03 | Cu/Al |
| 22 | 430 | 22 | 1.72-2.61 | 109.22 | 13.1 | 2.03 | Cu/Al |
Medium Flat Rectangular Rigid Waveguide Tube
| WG Designation | Frequency | Inside dimension | Wall thickness | Material | |||
| R | WR | BJ | a | b | |||
| 100 | 90 | 100 | 8.20-12.5 | 22.86 | 5 | 1 , 1.27 | Cu/Al |
| 70 | 137 | 70 | 5.38-8.17 | 34.85 | 8.7 | 1.625 | Cu/Al |
| 58 | 159 | 58 | 4.64-7.05 | 40.386 | 10.1 | 2 | Cu/Al |
| 48 | 187 | 48 | 3.94-5.99 | 47.549 | 11.9 | 1.2 , 1.625 | Cu/Al |
| 40 | 229 | 40 | 3.22-4.90 | 58.1 | 14.5 | 1.625 | Cu/Al |
Get Price And Support
